22' with 2 Towers 9014232

Home > Shop By Categories > Auto Body > Frame Rack > American Freedom GT Frame Machine >

Call For Details 877-966-7772

Alternative Views:

You May Qualify For a Freight Credit Call 877-966-7772

Retail Price $57,916.67

Sale Price: $49,642.86

Item Condition: New
UPC: 687927276482

Availability: Usually Ships in 6 to 8 Weeks
Product Code: CJ-9014232

Qty:

Description

Technical Specs

Prop 65 Information

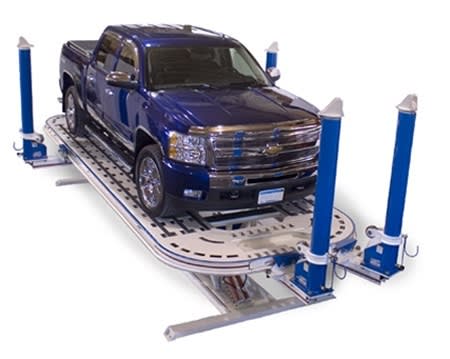

22' American Freedom GT Frame Machine 2 Tower 9014232 - Features of the American Freedom GT include; a 92 inch wide platform, working heights as low as 12 inches and as high as 42 inches in addition to a 12,000 pound lift capacity. Allowing auto body shops to increase their productivity, by accepting heavier and wider vehicles, is the number one benefit of this new machine.

MADE IN THE USA!
This is the only machine that looks like this that is made in the USA. (Just Ask)

Features

Extra Wide 92"
Lift capacity: 12,000 lbs.
Made in the USA
Optional tower configurations: 2, 3 or 4 towers. Please call for configurations.
Length of bed top: 22 ft.
Length w/towers extended: 26 ft. 11 in.
Width w/towers extended: 12 ft. 6 in.
Width of treadway: 28.5 in.
Width between treadways: 35.5 in.
Overall height: 9 ft. 11 in. Tower heads lowered: 9 ft. 1 in.
Loading height: 12 in.
Working height: 12 in. up to 42 in.
Hydraulics: 10 ton, all electric over hyd. or all air over hyd.
Power required: 120v, 20 amp, dedicated service for electric over hyd. model
Tie downs: 222
Specifications are subject to change without notice.
